Lonsdor K518 Pro 를 등록하는 방법은 무엇입니까? 원하는 기능을 어떻게 수행하나요?

여기서 eobdtool.co.uk 는 필요한 고객을 위한 자세한 가이드를 공유합니다.

K518 Pro를 등록하는 방법은 무엇입니까?
K518 Pro 태블릿을 부팅하고 설정>> Wi-Fi 설정으로 이동하여 사용 가능한 Wi-Fi에 연결하세요.
등록 및 활성화 프로세스 시작
사용자 이름, 비밀번호, 휴대폰 번호 또는 이메일을 입력하여 인증 코드를 받은 다음 코드를 입력하고 등록을 제출하십시오.
새 계정을 성공적으로 등록한 후 장치의 시동 비밀번호를 설정하십시오.
정보를 제출하고 K518 Pro 키 프로그래머에 계정 바인딩을 신청하세요.
서버에서 확인됨
등록 성공 후 메뉴 초기화 등
지원되는 기능을 수행하려면 재부팅하고 장치 시스템으로 들어가십시오.

K518PRO 의 기능을 사용하는 방법은 무엇입니까?
메뉴의 기능이 정확히 무엇을 할 수 있는지 이해하고 작동에 필요한 기능을 선택하세요.

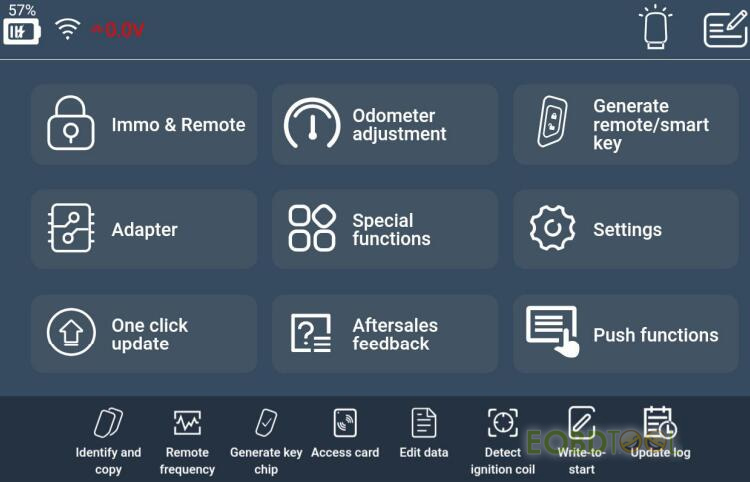

1.K518 PRO 메뉴 기능 표시

Immo & Remote	Program mechanical key/smart key/remote and other functions; l Support a vast majority of vehicle models on the market, regularly add new models
Odometer adjustment	Mileage diagnosis and correction for some models
Generate remote/smart key	Support smart key generation for some models, remote generation for most vehicle models, and garage door remote generation.
Adapter	Read and write EEPROM chip/CPU main control chip, read EEPROM Pin code, etc.
Special functions	Include functions: identify and copy key chip, generate key chip, detect remote frequency, simulate chip, decode chip, detect IMMO coil, key settings, access control card, etc.
Push Functions	Push the designated function program to user, which will be automatically disabled when expired. Contact us to acquire functions not opened or not activated yet.
OBD Illumination	OBD cable connector's light can be switched on/off.
Aftersales feedback	Users can feedback problems encountered to us.
Aftersales feedback message board	On the message board, user can see our reply to all the questions after giving feedback, and inquiry further if any doubt.

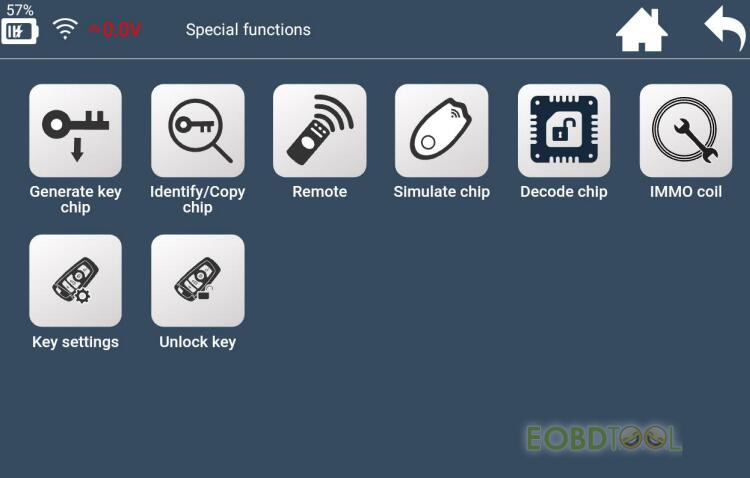

2.K518 PRO 특수 기능 지침

Generate key chip	Support 4D, 46, 48, 7935, 8A and more chips to generate specific car key chips
Identify/Copy chip	Identify key chip info and status of almost all cars on the market
Remote	Detect frequency of remote key
Simulate chip	Mainly LKE functions, include: simulate 4D/46/8A chip, bind LKE and obtain LKE info, etc
Decode chip	Support 46 and 4D chip decoding
IMMOcoil	Detect if immo coil has signal, and identify key type in AKL situation as well
Key settings	Set Lonsdor 8A and 4D smart key type
Unlock key	Unlock Toyota 8A smart key

3.K518PRO 시스템 설정 인터페이스 지침

Wifi settings	Set WIFI connection.
Ethernet	Display Ethernet card status, network connection status, MAC/IP address, etc.
Bluetooth settings	Set Bluetooth connection status.
Brightness and sound	Set screen brightness and auto-off screen time.
Start record	Click to start recording, or close demo video.
Device info	View device ID, PSN, hardware/kernel version and other info.
Screen test	Screen touch diagnosis
Firmware upgrade	Include APK update, kernel upgrade, etc
Reset device	Reset the device, situations like program error, system crash, communication failure, can be returned to normal state.
File manager:	View and manage files.
Network test	Test network when it is unstable.

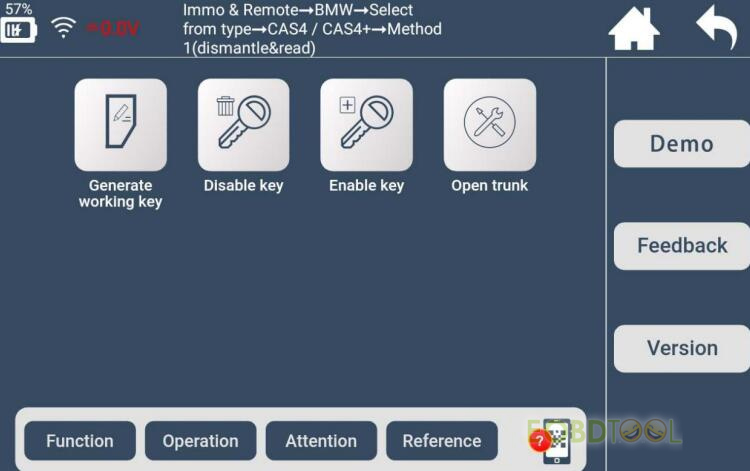

4. Lonsdor K518Pro 기능 작동 인터페이스 지침

Function	Illustrate each function, and the necessary tips for certain functions.
Operation	Give concrete guide for each step, pics and notices attached if necessary.
Attention	Emphasize tips and notices for functions, as well as user possible overlook during operation which may cause program failure.
Reference	Provide the basic information like chip type, frequency, key embryo no., PIN code requirement, car photo, OBD position and other related info.
QR code	Scan QR code to view HELP instructions while programming key.
Demo	Demo record and user record process.
Feedback	Feedback function problems in time.
Version	Detect the latest version of current interface function.
